CANTILEVER BOOM
CANTILEVER BOOM GATE

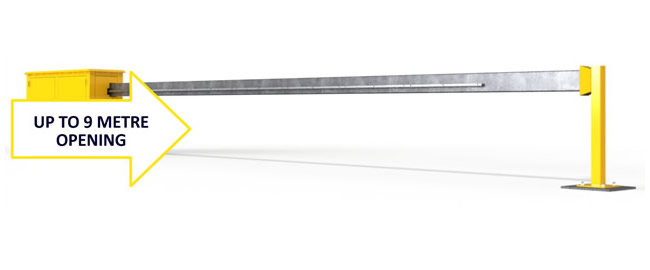

The "Cantilever Boom" is essentially a sliding boom gate. They are perfect for anywhere where you want a higher degree of security than a traditional boom or chain gate will supply. Cantilever booms have been installed at the entrance or exit to car parks, national parks, right of ways and the list goes on. Cantilever booms can span up to 9 metre openings and can be controlled by all access equipment.
Cantilever booms are available in two sizes being up to six metre opening or up to nine metre opening. Both size options are ready to bolt down to a hardstand - simply add boom. Both models have both opening and closing boom support.
The kit is designed for the quality Italian sliding gate motor the TONE10B. The TONE10B can accept all forms of access control and has easy battery backup. Solar power options are as simple as adding panel, regulator and battery.
Cabinet cover is powder coated safety yellow or to your preferred colour. Legs and boom supports are zinc coated.
CANTBOOM6 - Automatic cantilever boom up to 6 metre opening (No Boom) $3348.00
BOOM125756000* - 125x75x8000 RHS Boom $465.00
CANTBOOM9 - Automatic cantilever boom up to 9 metre opening (No Boom) $3732.00
BOOM125759000* - 125x75x12000 RHS Boom $697.00
CANTILEVER BOOM THRU
DOWNLOADS
Cantilever Boom Installation Manual
OPTIONAL
TONE10B Sliding gate motor.
Solar power kits.
Solar mounting posts.
Post plates and rag bolts.
